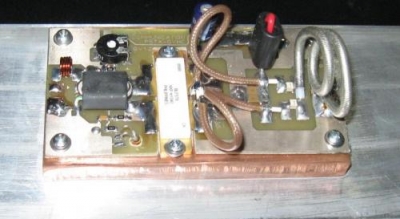

BLF578 1000W FM RF Pallet

BLF578 1000W FM RF Pallet
Harga
Rp 1,00
  Beli BLF578 1000W FM RF Pallet

Designed for FM radio transmitters, this amplifier uses a single BLF578 push-pull transistor to produce 800 watts!!!

* 87.5-108MHz 43 - 45Volts
* Input/Output 50 ohms
* Pout 800W with a 2.5 watt input.
* 25dB gain minimum.
* Low distortion Class B push-pull.
* Small size: only 2.25 in x 4.0 inches
* 78% efficiency typical.
* Power requirements 22.5 to 24 ADC 800W out at 43V.
