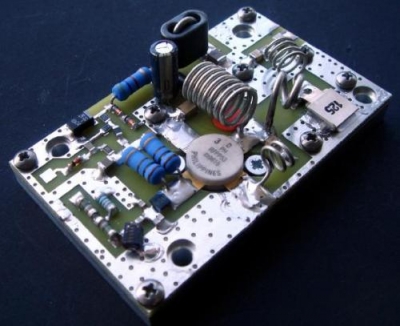

Pallet 150w

Pallet 150w
Harga
Rp 1,00
  Beli Pallet 150w

Ready Stock


ELECTRICAL SPECIFICATIONS
(Base Plate T. = 45 °C, 50 loaded, Vdd = 50 V idq=80ma)

Characteristics
Operating Frequency Range : 87.5 108 Mhz
Power Output 150 W
Power Input 2 5 W
Power Gain 16 dB
Drain Efficiency 75 %
Input VSWR 1.8
Insertion Phase Variation (Unit to Unit ) < 10 degrees
Power Gain Variation (Unit to Unit) +/- 1 dB
F2 Second Harmonic suppression -36 -45 dB
F3 Third Harmonic suppression -50 -65 dB


ABSOLUTE MAXIMUM RATING
( T case = 70 °C. )

Voltage supply 52 V dc
Supply Current 5 A dc
VSWR Load Mismatch (all phase angles, Tc=45°C ) 3:1
Storage Temperature Range -20 / +70 °C
Operating Temperature 65 °C
