Power Amplifier 800W FM
| Harga | Rp 1,00 |
 |
Ready Stock

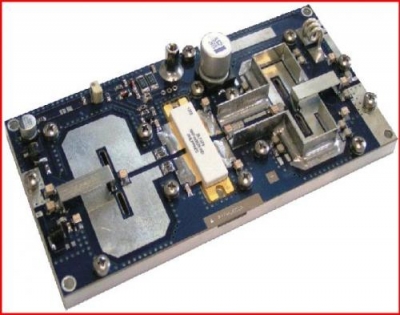

Power Amplifier Section 800W FM
Designed primarily for FM application, with a
reliable Power Ldmos device.
This amplifier is suitable for any CW or pulsed
application.
Output power detector and temperature detector
available as option.
� 87.5 - 108 Mhz
� Pout : 800 W
� Gain : 25dB
� 50 Ohm in/out impedance
� Class B
� Devices : BLF578
� Supply : 30-45 Vdc
� Dimensions : (LxWxH):140x68x21mm
5,55”x2,67”x0,82”
