Pallet Amplifier 3kW 87.5-108Mhz
| Harga | Rp 1,00 |
 |
Description :

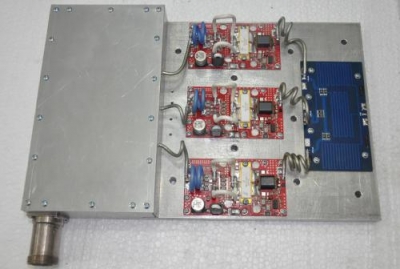

Pallet Amplifier 3000 Watt
Designed for 87.5-108Mhz radio transmitters, this amplifier use Triple MRF6VP11KH
push-pull transistor to produce 2500-2700 watts!!!
87.5-108 MHz 48-50Volts
Input/Output 50 ohms
Pout 2500W with 12W input.
25dB gain minimum.
Low distortion Class B push-pull.
Dimension : 34x22x5cm
70% efficiency typical.
Power requirements 3x25 Amps ADC 2500W out at 50V
Testing Current
Testing Power
Testing Input
Testing Spectrum Analyzer
