1800W FM Pallet
| Harga | Rp 1,00 |
 |
Ready Stock

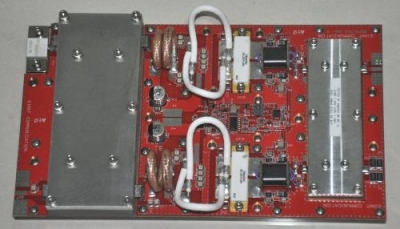

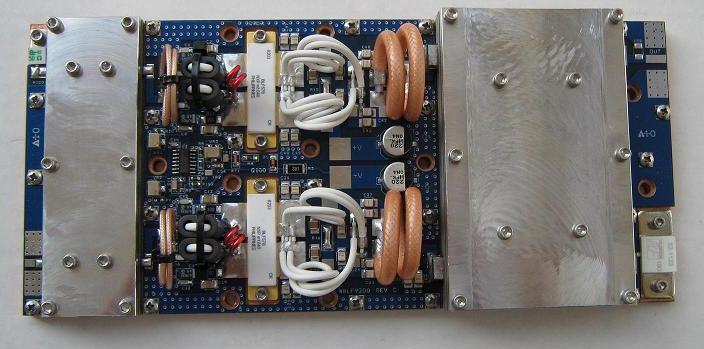

Designed for FM radio transmitters, this amplifier uses a pair of BLF178P push-pull transistor to produce a minimum 1800watts!
87.5-108MHz 43 - 50Volts
Input/Output 50 ohms
Pout 1800W with 4W input.
25dB gain minimum.
Low distortion Class B push-pull.
Small size: only 5.0 in x 9.0 inches
75 to 80% efficiency typical.
Power requirements 48 ADC 1800W @50V.
