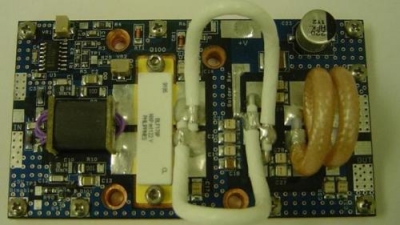

BLF578 1000W FM Pallet
| Harga | Rp 1,00 |
 |
Designed for FM radio transmitters, this amplifier uses a single push-pull transistor to produce 800 to 1000 watts!!!
87.5-108MHz 43 - 45Volts
Input/Output 50 ohms
Pout 1000W with 2.5W input.
25dB gain minimum.
Low distortion Class B push-pull.
Small size: only 2.25 in x 4.0 inches
78% efficiency typical.
Power requirements 22.5 to 23.5 ADC 800W out at 43V.
Power requirements 25.5 to 27 ADC 1000W out at 50V
