Low Pass Filter 1000w + Coupler

Low Pass Filter 1000w + Coupler
Harga
Rp 1,00
  Beli Low Pass Filter 1000w + Coupler

Barang Baru
Pesan khusus / tidak Ready Stock

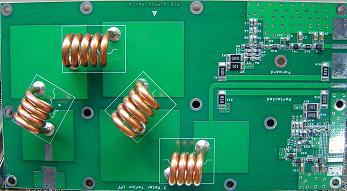

This low pass filter directional coupler uses voltage doubler diode detectors to provide a DC voltage at the forward and reflected test ports.
This coupler is ideally suited for VSWR protection circuits.
Filter Specifications = 86-110MHz 1000 watts maximum.
9th order Chebyshev typology.
Ultra low loss Teflon PCB; tightly controlled dielectric constant.
large #8 awg inductors.
0.12 dB insertion loss maximum; 0.1dB typical.
-28dB return loss; -33dB typical.
-47dB rejection at 176MHz. That's the 1st harmonic of 88MHz Directional Coupler Specifications #
Directivity: 25dB typical
Detector output level: 2.5 volts max at 108MHz, 1000W.
Detector typology: Voltage doubler schottky detector.
