SLIM 10000 LC UHF

SLIM 10000 LC UHF
Harga
Rp 1,00
  Beli SLIM 10000 LC UHF

 V75_04_UHF_SD_PCM - PPT





- POWER COFDM: 6000

- ATSC POWER: 6400

- POWER ANALOG: 10000

- CONNECTOR: 3 1/8

- RACK UNIT: 44

- ENERGY CONSUMPTION: N/A

- RACK: YES

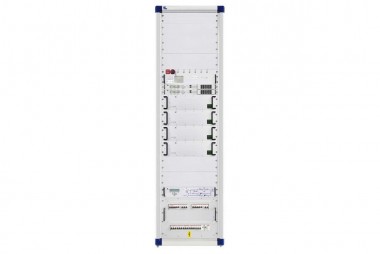

6000 Wrms COFDM, 6500 Wrms ATSC and 10000 W p.s. Liquid cooled rack solution based on one driver and four amplifiers, using High efficiency PPT™ technology multimode and multistandard.



The V75_04_UHF_SD_PCM PPT (PPT=  Passive Peack Tracking – registered proprietary mark, patent pending), is the liquid power transmitter solution from Supreme line. 44 rack module-19”std is capable on an overall efficiency of a single final stage around 42% and the efficiency of the whole transmitter is about 38%.



The V75 Amplifiers: high power, liquid cooled, compact design: up to 1,7kW rms / 2,5 kW p.s in only 3 RU working in CLASS AB, high efficiency PPT class, strong and reliable, over 5000 amplifiers delivered on the same type of design.

Extremely high MTBF with fault rate less than 1% /year.

Thermal design with amplitude and phase compensated board: really hot pluggable modules, no re-adjustment needed

Clever liquid cooling plant: works only if needed, coolant flow temperature compensated, maximize efficiency and reliability, minimize operating costs. Up to 20kW p.s. / 12 kW rms in one single cabinet (including the redundant liquid cooling system).Features:V75_04_UHF_SD_PCM - PPT





- POWER COFDM: 6000

- ATSC POWER: 6400

- POWER ANALOG: 10000

- CONNECTOR: 3 1/8

- RACK UNIT: 44

- ENERGY CONSUMPTION: N/A

- RACK: YES
