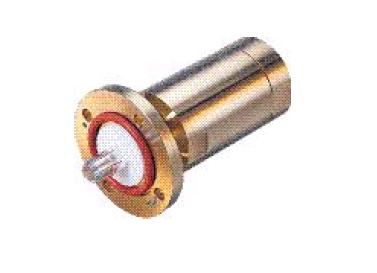

Andrew L47R Build Up

Harga	Rp 1,00

Barang Baru
Ready Stock



CHARACTERISTICS
General Specifications
Interface 1-5/8 in EIA Flange
Body Style Straight
Mounting Angle Straight
Electrical Specifications
Operating Frequency Band 0 – 2500 MHz
Average Power 2.3 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 6000 V
Inner Contact Resistance 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Outer Contact Resistance 1.50 mOhm
Peak Power, maximum 90.00 kW
RF Operating Voltage, maximum (vrms) 2120.00 V
Shielding Effectiveness -110 dB
Mechanical Specifications
Outer Contact Attachment Method Self-flare
Attachment Durability 25 cycles
Connector Retention Tensile Force 500 lbf | 2224 N
Connector Retention Torque 120 in lb | 14 N-m
Inner Contact Attachment Method Tab-flare
Interface Durability 50 cycles
Pressurizable No
Dimensions
Nominal Size 1-5/8 in
Diameter, maximum 3.50 in | 88.90 mm
Length 5.10 in | 129.54 mm
Weight 1555.85 g | 3.43 lb
