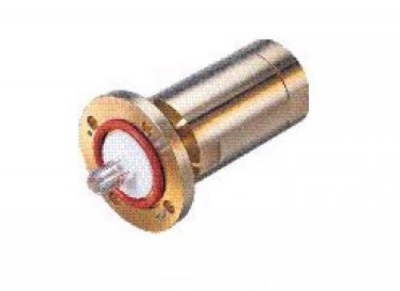

Andrew L45R Build Up
| Harga | Rp 1,00 |
 |
Original Andrew
L45R
7/8 in EIA Flange for 7/8 in LDF5-50A cable
CHARACTERISTICS
General Specifications
Interface 7/8 in EIA Flange
Body Style Straight
Mounting Angle Straight
Electrical Specifications
Operating Frequency Band 0 – 5000 MHz
Average Power 2.3 kW @ 900 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 6000 V
Inner Contact Resistance 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Outer Contact Resistance 1.50 mOhm
Peak Power, maximum 90.00 kW
RF Operating Voltage, maximum (vrms) 2120.00 V
Shielding Effectiveness -110 dB
