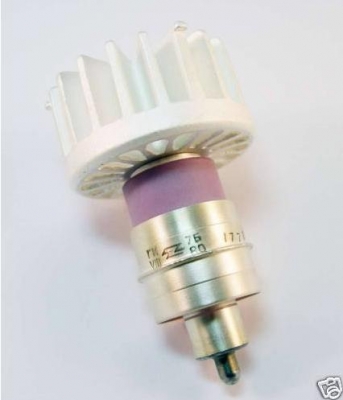

Russia GI-7BT
| Harga | Rp 1,00 |
 |
Barang Baru Stock Lama
Ready Stock
Name GI7BT
Type pulse triode
Cathode type oxide,indirect heating
Application field Oscillation UHF in continous mode and pulse mode with anode modulation in special equipment
Brief application Oscillation
Envelope metal-ceramic
Cooling method forced air
Dimensions 110,5mmx65mm
Mass 330g
Filament voltage 12,6V
Filament current 1,8 - 2,050A
normal anode voltage 1,3kV
Mutual conductance 20 to 26mA/V
Output power 350W/11kW in pulse
Maximum anode voltage 2,5kV/9kV in pulse
Maximum operating frequency 18cm
