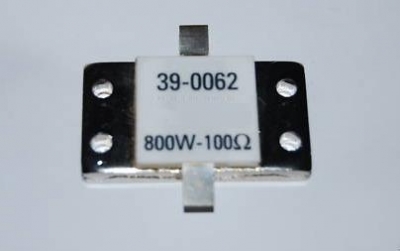

Resistor 800W 100 Ohm
| Harga | Rp 1,00 |
 |
hybrid 100 ohm terminating load resistors rated at 800 watts continuous power dissipation when installed on an appropriate heat sink.
It is a solder in type part with no RF connectors, and 1500 watts PEP for short periods.
They measures approximately 2 inch long x 1 inch wide x .25 inch high and are rated up to 500 mHz with a VSWR of less than 1.3.
For pulse operation, the part is rated at 8000 watts for 1% duty cycle and pulses less than 100 microseconds. These parts are good to build your own load or for terminating isolator circuits on RF amplifiers.
