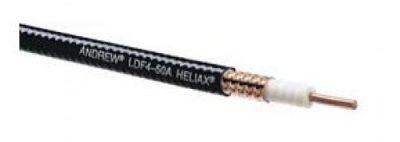

Heliax 1/2

Heliax 1/2
Harga
Rp 1,00
  Beli Heliax 1/2

Barang Baru
Ready Stock



Standard Cable jenis Merek ACOME 1/2"R

Electrical

Impedance, ohms 50 ± 1
Maximum Frequency, GHz 8.8
Velocity, percent 88
Peak Power Rating, kW 40


Mechanical

Outer Conductor Copper
Inner Conductor Copper-Clad Aluminum
Diameter over Jacket, in (mm) 0.63 (16)
Diameter over Copper Outer Conductor, in (mm) .55 (14)
Diameter Inner Conductor, in (mm) 0.189 (4.6)
Minimum Bending Radius, in (mm) 5 (125)
Cable Weight, lb/ft (kg/m) .15 (0.22)



Attenuation & Average Power
Frequency
MHz Attenuation
dB/100 ft. Attenuation
dB/100 m Average
Power, kW
30 0.357 1.17 6.46
50 0.463 1.52 4.98
150 0.815 2.67 2.83
200 0.946 3.10 2.44
894 2.09 6.05 1.10
1500 2.77 9.09 .833
2300 3.52 11.5 0.657
