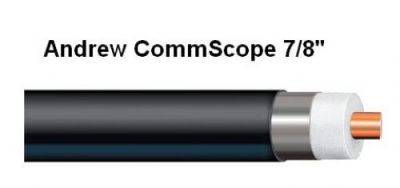

Andrew Commscope 7/8

Harga	Rp 1,00

Construction Materials
Jacket Material PE
Outer Conductor Material Smoothwall aluminum
Dielectric Material Foam PE
Flexibility Flexible
Inner Conductor Material Copper
Jacket Color Black

Dimensions
Nominal Size 7/8 in
Cable Weight 0.25 lb/ft | 0.37 kg/m
Diameter Over Jacket 1.090 in | 27.700 mm
Inner Conductor OD 0.3750 in | 9.5000 mm
Outer Conductor OD 1.005 in | 25.500 mm

Electrical Specifications
Cable Impedance 50 ohm ±1 ohm
Capacitance 23.0 pF/ft | 75.4 pF/m
dc Resistance, Inner Conductor 1.005 ohms/kft | 3.300 ohms/km
dc Resistance, Outer Conductor 0.350 ohms/kft | 1.150 ohms/km
dc Test Voltage 6000 V
Inductance 0.190 µH/m | 0.058 µH/ft
Insulation Resistance 100000 Mohms•km
Jacket Spark Test Voltage (rms) 8000 V
Operating Frequency Band 100 – 5300 MHz
Peak Power 86.0 kW
Velocity 88%

Environmental Specifications
Installation Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature -50 °C to +70 °C (-58 °F to +158 °F)
Storage Temperature -55 °C to +80 °C (-67 °F to +167 °F)
