RG-142
| Harga | Rp 1,00 |
 |
Barang Baru
Ready Stock
TEFLON RG-142
Harga Rp 125,000 / Meter

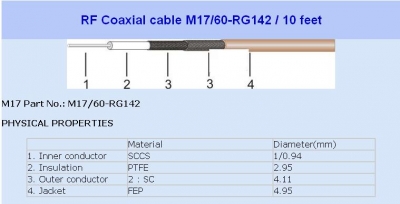

PHYSICAL PROPERTIES
Material Diameter(mm)
1. Inner conductor SCCS 1/0.94
2. Insulation PTFE 2.95
3. Outer conductor 2 : SC 4.11
4. Jacket FEP 4.95
ELECTRICAL PROPERTIES
Nom. Capacitance Conductor to Shield(pF/m) 96.5
Nom. Characteristic Impedance(ohm) 50
Nom. Velocity of Propagation(�) 69.5
Min. Bend Radius(Install)(mm) 25
Voltage Rating(VMS) 1900
Max. Operating Frequency(MHz) 8000
Operating Temperature Rating(°C) -55ï½�+200
Nom. Attenuation
Frequency(MHz) Nom. Attenuation(�dB/m)
100 0.125
400 0.256
1000 0.420
3000 0.781
5000 1.050
