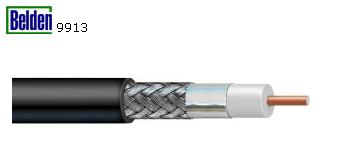

Belden 9913
| Harga | Rp 1,00 |
 |
Barang Baru
Ready Stock
Manufacturer Belden
Model # 9913
Product Description 50 Ohm Coaxial Cable - Low Loss RG8/U Cable
Cable Type 3/8" Braided
Connectors Choose Below - Note: Price INCLUDES installation of connectors.
Shield % 100%
Impedance 50 Ohms
VOP. 84%
Center Conductor 0.108" Solid
Insulation Polyethylene
Other Spec Black Jacket
Nom. core O.D. (in.) 0.285"
Nom. O.D. (in.) 0.405"
Losses Shown are based on 100 Foot Length
loss 50 MHz 0.9 db
loss 100 MHz 1.3 db
loss 400 MHz 2.7 db
loss 900 MHz 4.2 db
loss 1000 MHz 4.5 db
Nom. Capacitance (pF/ft) 24.6
Warranty 1 Year
