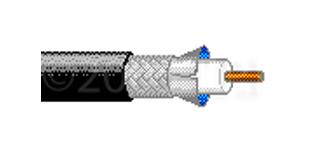

Ericsson TZC500
| Harga | Rp 1,00 |
 |
Barang Baru
Ready Stock
Tipe RG-8
Impedance 50 Ohm
Conductor : Solid Bare Copper 2.74 +- 0.025mm
Dielectric : Foamed PE ( good adhesion to conductor ) 7.25 +- 0.13mm
Foil Shield : AL/PET/AL-Tape bonded to dielectric
Braid Shield : Solid tinned copperbraid , Coverage > 88% , 8.1mm
Jacket: Black PE- Material , ERICSSON TZC 500 32"
Capacitance : 78 pF/m
Impedance : 50 Ohm
Velocity Factor : 87%
DC Resistance 3,0/5,9 Ohm/Km
Frequency range : DC-4Ghz
Rated Voltage 600V AC
Breakdown Voltage 2600 V DC
Tesile Strenght = > 1500N
hamradio.lakki.iki.fi/new/Datasheets/Cables/NEK_RG8.PDF
