Pemancar FM-400W POSTEL

Harga	Rp 1,00

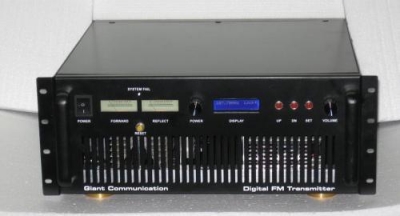

Pemancar FM 500 Watt, Continuous 400 Watt

Sudah Bersertifikasi Postel Indonesia kelas A, terjual sudah lebih dari 80 unit


FM400W

The FM400W sstem is ultra compact size, extremely high effieciency, fully solid state FM transmitter of 400 Watt rated power. With advance selft protection and full digital front panel control features, advanced FM transmitting Technology.
Our new Gcom FM400W is a state of art 400 Watt FM transmitter offers excellent performance while keeping cost effective and easy of use.
Gcom FM400W is using 500 Watt Moster system, that only running 4000W after low pass filter, Continuous power for 24 hours operation.

INTEGRATED INFORMATION DISPLAY AND PROTECTION CONTROLS

- Integrated display page for all transmitter parameter.
- Full protection for malfunction like Reflected power and over temperature.
- Healt Monitoring and protection of individual PA module and Power Supply Module
- Simplified control from front panel.




SPECIFICATION :


Frequency : 88–108 Mhz Broadband Design
Frequency Step : 100 Khz
RF Power : 0 – 500 Watt , 400w Con.
PA Board Efficiency : 70%
PSU Efficiency : 90%
VSWR Protection :2:1 ( adjustable )
Distortion : 0.02%
Modulation : Direct FM
Harmonic Output : <70 dbc
Spurious Output : -86dbc
stereo separation : 45dB
Audio System : Stereo
Audio Input Level : 0.2 V
Audio Response : 1Hz-100kHz

Dimension : Standard 19” 480x460x190mm
