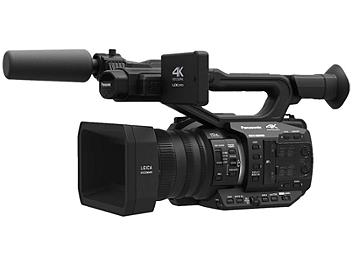

Panasonic AG-UX90 4K Camcorder PAL
| Harga | Rp 1,00 |
 |
1.0"-Type CMOS Sensor
Optical 15x (24.5-367.5mm) Zoom with OIS
UHD/FHD Dual Codec Recording
HDMI Output
Specifications
Sensor Type : MOS
Sensor Size : 1" (crop factor 2.7)
Sensor Resolution
17.78MP @ HD
8.59MP @ 4K
Video Format
AVCHD(MPEG4/H.264) Long GOP up to 25Mbps - 4:2:0/8bit - M2TS files
MPEG4/H.264 Long GOP up to 50Mbps - 4:2:0/8bit - MOV/MP4 files
MPEG4/H.264 Long GOP up to 100Mbps (4K)- 4:2:0 8bit - MOV/MP4 files
Video Resolution
SD 576i PAL(16:9)
HD 720: 1280x720 pixels (16:9)
HD 1080: 1440x1080 pixels (4:3)
HD 1080: 1920x1080 pixels (16:9)
4K UHD: 3840 x 2160 pixels (16:9)
Frame Rate
25p @ 3840 x 2160
25p / 50i / 50P @ 1920 x 1080
50i @ 1440 x 1080
50p @ 1280 x 720
50i @ 720 x 576
Rec Media : SD / SDHC / SDXC Card
Number of Media Slots : 2
Simultaneous Recording : Yes
Pre Recording : Yes - 4sec
Quick Motion - Time Lapse : Yes
Recording Time
300 min @ 25 Mbps with 64GB card
148 min @ 50 Mbps with 64GB card
74 min @ 100 Mbps with 64GB card
Lens Type : Fixed
Lens Brand : Leica
Lens Focal Length
24.5mm to 367.5mm (35mm equivalent) @ HD
35.4mm to 531mm (35mm equivalent) @ 4K
Zoom : 15x
Aperture
Zoom out: F2.8 to F11
Zoom in: F4.5 to F18
Control Rings
3 Rings (Zoom, Focus, Iris)
Auto Focus : Yes
Image Stabilizer : Yes, 5-axis
Filter Diameter : 67mm
ND Filters : Yes
Video outputs : HDMI 4K, CVBS (RCA)
Audio inputs : 2 x 3-PIN XLR MIC/LINE
Audio outputs : Jack 3.5mm Phones, RCA Line
PC Connections : USB3.0, USB3.0 Host
Other Connectors : Remote Zoom (Jack 2.5mm), Remote Focus (Jack 3.5mm)
Shutter speed : 1/2sec to 1/8000sec
Min. Illumination : 1.1 Lux
Live Streaming : No
FTP Transfer : No
LCD : 3.5"
Viewfinder : 0.24"
Power : Panasonic VW-VBD58 Type Battery, Power adapter
Power Consumption : 12.2W (7.2V / 1.69A - 12V / 1.01A)
Total Weight : 2.3 kg
Total Dimensions (WxHxD) : 169 x 195 x 382 mm
Sensor Size : 1" (crop factor 2.7)
Sensor Resolution
17.78MP @ HD
8.59MP @ 4K
Video Format
AVCHD(MPEG4/H.264) Long GOP up to 25Mbps - 4:2:0/8bit - M2TS files
MPEG4/H.264 Long GOP up to 50Mbps - 4:2:0/8bit - MOV/MP4 files
MPEG4/H.264 Long GOP up to 100Mbps (4K)- 4:2:0 8bit - MOV/MP4 files
Video Resolution
SD 576i PAL(16:9)
HD 720: 1280x720 pixels (16:9)
HD 1080: 1440x1080 pixels (4:3)
HD 1080: 1920x1080 pixels (16:9)
4K UHD: 3840 x 2160 pixels (16:9)
Frame Rate
25p @ 3840 x 2160
25p / 50i / 50P @ 1920 x 1080
50i @ 1440 x 1080
50p @ 1280 x 720
50i @ 720 x 576
Rec Media : SD / SDHC / SDXC Card
Number of Media Slots : 2
Simultaneous Recording : Yes
Pre Recording : Yes - 4sec
Quick Motion - Time Lapse : Yes
Recording Time
300 min @ 25 Mbps with 64GB card
148 min @ 50 Mbps with 64GB card
74 min @ 100 Mbps with 64GB card
Lens Type : Fixed
Lens Brand : Leica
Lens Focal Length
24.5mm to 367.5mm (35mm equivalent) @ HD
35.4mm to 531mm (35mm equivalent) @ 4K
Zoom : 15x
Aperture
Zoom out: F2.8 to F11
Zoom in: F4.5 to F18
Control Rings
3 Rings (Zoom, Focus, Iris)
Auto Focus : Yes
Image Stabilizer : Yes, 5-axis
Filter Diameter : 67mm
ND Filters : Yes
Video outputs : HDMI 4K, CVBS (RCA)
Audio inputs : 2 x 3-PIN XLR MIC/LINE
Audio outputs : Jack 3.5mm Phones, RCA Line
PC Connections : USB3.0, USB3.0 Host
Other Connectors : Remote Zoom (Jack 2.5mm), Remote Focus (Jack 3.5mm)
Shutter speed : 1/2sec to 1/8000sec
Min. Illumination : 1.1 Lux
Live Streaming : No
FTP Transfer : No
LCD : 3.5"
Viewfinder : 0.24"
Power : Panasonic VW-VBD58 Type Battery, Power adapter
Power Consumption : 12.2W (7.2V / 1.69A - 12V / 1.01A)
Total Weight : 2.3 kg
Total Dimensions (WxHxD) : 169 x 195 x 382 mm
In the Box
Battery (AG-VBR59)
Battery charger (AG-BRD50)
AC adaptor
Microphone holder
Screw for microphone holder (12 mm)
AC cable x 2
Eye cup
Lens hood
INPUT terminal cap
Panasonic AG-UX90 manual
Battery charger (AG-BRD50)
AC adaptor
Microphone holder
Screw for microphone holder (12 mm)
AC cable x 2
Eye cup
Lens hood
INPUT terminal cap
Panasonic AG-UX90 manual
