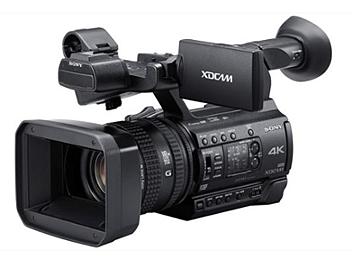

Sony PXW-Z150 4K XDCAM Camcorder
| Harga | Rp 1,00 |
 |
Exmor RS CMOS Sensor
UHD 4K (3840 x 2160)
HD up to 120 fps
12x Optical Zoom
XAVC, AVC/H.264, AVCHD 2.0, MPEG-4
Slow and Quick Motion Function
Two SD Memory Card Slots, Wi-Fi
2 x 3-Pin XLR Audio Inputs
Specifications
General
Weight :
Approx. 1895g / 4lb 3 oz (Body)
Approx. 2270g / 5lb (with lens hood, eyecup, NP-F770 battery)
Dimensions (W x H x D) :
171.3 x 187.8 x 371.3 mm (6 3/4 x 7 3/8 x 14 5/8 inches)
With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts
Power Requirements : DC In: 8.4V, Battery: 7.2 V
Power Consumption : 6.7 W
Battery Operating Time : 260 min with enclosed NP-F770, up to 7 hours with Globalmediapro DC970 battery
Operating Temperature : 0 to 40oC (32 to 104oF)
Storage Temperature : -20 to +60oC (-4 to +140oF)
Recording
Media Type : MS/SD (1), SD (1)
Recording Format (Video)
XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile
XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
XAVC Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
MPEG HD422 : MPEG-2 422P@HL 4:2:2 Long profile
MPEG HD420 : MPEG-2 MP@HL 4:2:0 Long profile
MPEG HD Proxy : MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
Recording Format (Audio)
XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz
XAVC HD : Linear PCM 2ch, 24bit, 48kHz
XAVC Proxy : AAC-LC 2ch, 16bit, 48kHz
MPEG HD422 : Linear PCM 2ch, 24bit, 48kHz
MPEG HD420 : Linear PCM 2ch, 16bit, 48kHz
MPEG HD Proxy : AAC-LC 2ch, 16bit, 48kHz
AVCHD : Linear PCM 2ch, 16bit, 48kHz Dolby Digital 2ch, 16bit, 48kHz
Recording Frame Rate
XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC HD (1920 x 1080) @59.94p, 50p, 50 Mbps/35 Mbps
XAVC HD (1920 x 1080) @59.94i, 50i, 50 Mbps/35 Mbps/25 Mbps
XAVC HD (1920 x 1080) @29.97p, 25p, 23.98p, 50 Mbps/35 Mbps
XAVC HD (1280 x 720)@59.94p, 50p, 50Mbps
XAVC Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 9Mbps
XAVC Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
MPEG HD422 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, 50 Mbps
MPEG HD422 (1280 x 720) @59.94p, 50p, 50Mbps
MPEG HD420 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode (35Mbps)
MPEG HD420 (1440 x 1080) @59.94i, 50i, HQ mode (35Mbps)
MPEG HD420 (1280 x 720) @59.94p, 50p, HQ mode (35Mbps)
MPEG HD Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
MPEG HD Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28 Mbps)
AVCHD (1920 x 1080) @59.94i/50i/29.97p/25p/23.98p, FX mode (24 Mbps), FH mode(17 Mbps)
AVCHD (1280 x 720)@59.94p, 50p, FX mode (24 Mbps) FH mode (17 Mbps) HQ mode (9 Mbps)
Recording/Playback Time
XAVC-L QFHD 100 mode, Approx. 65 min with 64 GB memory card
XAVC-L QFHD 60 mode, Approx. 100 min with 64 GB memory card
XAVC-L HD 50 mode, Approx. 120 min with 64 GB memory card
XAVC-L HD 35 mode, Approx. 170 min with 64 GB memory card
XAVC-L HD 25 mode, Approx. 220 min with 64 GB memory card
MPEG HD422 @LPCM 2ch 50 Mbps, Approx. 110 min with 64 GB memory card
MPEG HD420 @LPCM 2ch HQ Mode, Approx. 170 min with 64 GB memory card
AVCHD@LPCM 2ch PS Mode, Approx. 290 min with 64 GB memory card
AVCHD@LPCM 2ch FX Mode, Approx. 340 min with 64 GB memory card
AVCHD@LPCM 2ch FH Mode, Approx. 450 min with 64 GB memory card
AVCHD@LPCM 2ch HQ Mode, Approx. 750 min with 64 GB memory card
Lens
Lens Mount : Fixed
Zoom Ratio : 12x (optical), servo
Focal Length : f = 9.3 - 111.6 mm equivalent to f = 29.0 - 348.0 mm on 35 mm lens (16:9)
Iris : F2.8 - F4.5 auto/manual selectable
Focus : AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele)
Image Stabilizer : ON/OFF selectable, shift lens
Filter Diameter : M62 mm
Camera Section
Imaging Device (Type) : 1.0-type (13.2 mm x 8.8 mm) back-illuminated Exmor RS CMOS sensor
Imaging Device (Pixel Count) : 20 M pixels (total), 14.2 M pixels (Effective)
Effective Picture Elements : 3840 (H) x 2160 (V)
Built-in Optical Filters
ND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Minimum Illumination : 1.7 lux (Low Lux)
Shutter Speed
[60i]: 1/8 - 1/10,000 (1/6 - 1/10,000 when shooting with 24p)
[50i]: 1/6 -1/10,000
Slow & Quick Motion Function
[60i]: XAVC HD: Frame rate selectable 1.2.4.8.15.30,60 fps
[50i]: XAVC HD: Frame rate selectable 1.2.3.6.12.25,50 fps
[60i]: MPEG HD: Frame rate selectable 1.2.4.8.15.30 fps
[50i]: MPEG HD: Frame rate selectable 1.2.3.6.12.25 fps
[60i]: AVCHD: Frame rate selectable 1.2.4.8.15.30,60 fps
[50i]: AVCHD: Frame rate selectable 1.2.3.6.12.25,50 fps
Super Slow Motion Function
[60i]: XAVC HD: Frame rate selectable 120 fps
[50i]: XAVC HD: Frame rate selectable 100 fps
White Balance : Preset (Indoor: 3200K, Outdoor: 5600K+/-7 steps, Color temperature set range: 2300-15000K), Onepush A, B, Auto selectable
Gain : -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma Curve : Selectable
Input / Output
Audio Input : XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Video Output : Integrated into Multi/Micro USB jack (x1), RCA pin(x1), Composite 1.0Vp-p, 75 Ohm
Audio Output : Integrated into Multi/Micro USB jack(x1), RCA pin(Monaural)(x1)
SDI Output : BNC (x1), 3G/HD/SD SMPTE ST 424/ST 292-1/ST 259 standards
Headphone Output : Stereo mini jack (x1)
Speaker Output : Monaural
DC Input : DC jack
Remote : Stereo mini-mini jack (Φ2.5 mm)
HDMI Output : HDMI connector (Type A)
Built-in Microphone : Omni-directional stereo electret condenser microphone
WiFi
Supported Format : IEEE 802.11 b/g/n
Frequency Band : 2.4 GHz bandwidth
Security : WEP/WPA-PSK/WPA2-PSK
NFC : NFC Forum Type 3 Tag compliant
Monitoring
Viewfinder : 1.0cm (0.39-inch) OLED, Approx. 1.44M dots
LCD : 8.8cm (3.5-inch), Approx. 1.56M dots
Weight :
Approx. 1895g / 4lb 3 oz (Body)
Approx. 2270g / 5lb (with lens hood, eyecup, NP-F770 battery)
Dimensions (W x H x D) :
171.3 x 187.8 x 371.3 mm (6 3/4 x 7 3/8 x 14 5/8 inches)
With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts
Power Requirements : DC In: 8.4V, Battery: 7.2 V
Power Consumption : 6.7 W
Battery Operating Time : 260 min with enclosed NP-F770, up to 7 hours with Globalmediapro DC970 battery
Operating Temperature : 0 to 40oC (32 to 104oF)
Storage Temperature : -20 to +60oC (-4 to +140oF)
Recording
Media Type : MS/SD (1), SD (1)
Recording Format (Video)
XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile
XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
XAVC Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
MPEG HD422 : MPEG-2 422P@HL 4:2:2 Long profile
MPEG HD420 : MPEG-2 MP@HL 4:2:0 Long profile
MPEG HD Proxy : MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
Recording Format (Audio)
XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz
XAVC HD : Linear PCM 2ch, 24bit, 48kHz
XAVC Proxy : AAC-LC 2ch, 16bit, 48kHz
MPEG HD422 : Linear PCM 2ch, 24bit, 48kHz
MPEG HD420 : Linear PCM 2ch, 16bit, 48kHz
MPEG HD Proxy : AAC-LC 2ch, 16bit, 48kHz
AVCHD : Linear PCM 2ch, 16bit, 48kHz Dolby Digital 2ch, 16bit, 48kHz
Recording Frame Rate
XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC HD (1920 x 1080) @59.94p, 50p, 50 Mbps/35 Mbps
XAVC HD (1920 x 1080) @59.94i, 50i, 50 Mbps/35 Mbps/25 Mbps
XAVC HD (1920 x 1080) @29.97p, 25p, 23.98p, 50 Mbps/35 Mbps
XAVC HD (1280 x 720)@59.94p, 50p, 50Mbps
XAVC Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 9Mbps
XAVC Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
MPEG HD422 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, 50 Mbps
MPEG HD422 (1280 x 720) @59.94p, 50p, 50Mbps
MPEG HD420 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode (35Mbps)
MPEG HD420 (1440 x 1080) @59.94i, 50i, HQ mode (35Mbps)
MPEG HD420 (1280 x 720) @59.94p, 50p, HQ mode (35Mbps)
MPEG HD Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
MPEG HD Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28 Mbps)
AVCHD (1920 x 1080) @59.94i/50i/29.97p/25p/23.98p, FX mode (24 Mbps), FH mode(17 Mbps)
AVCHD (1280 x 720)@59.94p, 50p, FX mode (24 Mbps) FH mode (17 Mbps) HQ mode (9 Mbps)
Recording/Playback Time
XAVC-L QFHD 100 mode, Approx. 65 min with 64 GB memory card
XAVC-L QFHD 60 mode, Approx. 100 min with 64 GB memory card
XAVC-L HD 50 mode, Approx. 120 min with 64 GB memory card
XAVC-L HD 35 mode, Approx. 170 min with 64 GB memory card
XAVC-L HD 25 mode, Approx. 220 min with 64 GB memory card
MPEG HD422 @LPCM 2ch 50 Mbps, Approx. 110 min with 64 GB memory card
MPEG HD420 @LPCM 2ch HQ Mode, Approx. 170 min with 64 GB memory card
AVCHD@LPCM 2ch PS Mode, Approx. 290 min with 64 GB memory card
AVCHD@LPCM 2ch FX Mode, Approx. 340 min with 64 GB memory card
AVCHD@LPCM 2ch FH Mode, Approx. 450 min with 64 GB memory card
AVCHD@LPCM 2ch HQ Mode, Approx. 750 min with 64 GB memory card
Lens
Lens Mount : Fixed
Zoom Ratio : 12x (optical), servo
Focal Length : f = 9.3 - 111.6 mm equivalent to f = 29.0 - 348.0 mm on 35 mm lens (16:9)
Iris : F2.8 - F4.5 auto/manual selectable
Focus : AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele)
Image Stabilizer : ON/OFF selectable, shift lens
Filter Diameter : M62 mm
Camera Section
Imaging Device (Type) : 1.0-type (13.2 mm x 8.8 mm) back-illuminated Exmor RS CMOS sensor
Imaging Device (Pixel Count) : 20 M pixels (total), 14.2 M pixels (Effective)
Effective Picture Elements : 3840 (H) x 2160 (V)
Built-in Optical Filters
ND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Minimum Illumination : 1.7 lux (Low Lux)
Shutter Speed
[60i]: 1/8 - 1/10,000 (1/6 - 1/10,000 when shooting with 24p)
[50i]: 1/6 -1/10,000
Slow & Quick Motion Function
[60i]: XAVC HD: Frame rate selectable 1.2.4.8.15.30,60 fps
[50i]: XAVC HD: Frame rate selectable 1.2.3.6.12.25,50 fps
[60i]: MPEG HD: Frame rate selectable 1.2.4.8.15.30 fps
[50i]: MPEG HD: Frame rate selectable 1.2.3.6.12.25 fps
[60i]: AVCHD: Frame rate selectable 1.2.4.8.15.30,60 fps
[50i]: AVCHD: Frame rate selectable 1.2.3.6.12.25,50 fps
Super Slow Motion Function
[60i]: XAVC HD: Frame rate selectable 120 fps
[50i]: XAVC HD: Frame rate selectable 100 fps
White Balance : Preset (Indoor: 3200K, Outdoor: 5600K+/-7 steps, Color temperature set range: 2300-15000K), Onepush A, B, Auto selectable
Gain : -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma Curve : Selectable
Input / Output
Audio Input : XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Video Output : Integrated into Multi/Micro USB jack (x1), RCA pin(x1), Composite 1.0Vp-p, 75 Ohm
Audio Output : Integrated into Multi/Micro USB jack(x1), RCA pin(Monaural)(x1)
SDI Output : BNC (x1), 3G/HD/SD SMPTE ST 424/ST 292-1/ST 259 standards
Headphone Output : Stereo mini jack (x1)
Speaker Output : Monaural
DC Input : DC jack
Remote : Stereo mini-mini jack (Φ2.5 mm)
HDMI Output : HDMI connector (Type A)
Built-in Microphone : Omni-directional stereo electret condenser microphone
WiFi
Supported Format : IEEE 802.11 b/g/n
Frequency Band : 2.4 GHz bandwidth
Security : WEP/WPA-PSK/WPA2-PSK
NFC : NFC Forum Type 3 Tag compliant
Monitoring
Viewfinder : 1.0cm (0.39-inch) OLED, Approx. 1.44M dots
LCD : 8.8cm (3.5-inch), Approx. 1.56M dots
In the Box
Lens hood
Large eyecup
Shoecap
Accessory shoe kit (accessory shoe, accessory shoe plate, 4 screws)
USB cable
AC Adaptor (AC-L100)
Power cord (mains lead)
Rechargeable battery pack (NP-F770)
Charger (BC-L1)
Wireless Remote Commander with Battery (RMT-845)
Sony PXW-Z150 Manual
Large eyecup
Shoecap
Accessory shoe kit (accessory shoe, accessory shoe plate, 4 screws)
USB cable
AC Adaptor (AC-L100)
Power cord (mains lead)
Rechargeable battery pack (NP-F770)
Charger (BC-L1)
Wireless Remote Commander with Battery (RMT-845)
Sony PXW-Z150 Manual
