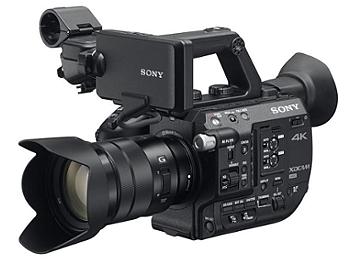

Sony PXW-FS5K 4K XDCAM Camcorder Kit with 18-105mm Lens
| Harga | Rp 1,00 |
 |
Super 35-Sized CMOS Sensor
Sony E-Mount
UHD at 24/30 FPS, HD Up to 240 FPS
XAVC Long, AVCHD Recording Codecs
2 x SD Media Card Slots
HD / 3G-SDI and HDMI Output
Supports Wi-Fi and NFC
Specifications
Sensor : Super 35mm Single-Chip 11.6MP Exmor CMOS
Included Lens
Focal Length: 18 to 105mm (comparable 35mm Focal Length: 27 to 158mm)
Iris: f/4 to f/22
Angle of View: 77.4 to 15.6o
Minimum Focus Distance: 1.48' / 45 cm
Image Stabilization: Yes
Autofocus: Yes
Filter Thread: 72mm
Dimensions (D x L): Approx. 3.07 x 4.33" / 7.8 x 11 cm
Weight: 15.06 oz / 427 g
Effective Picture Size (H x V) : 3840 x 2160
LCD Monitor : 3.5" / 8.8 cm, Approximately 1.56M dots
Viewfinder : 0.39" / 0.99 cm OLED, Approximately 1.44M dots
ND Filter Variable : 1/4 to 1/128, Presets - Clear, 1/4, 1/26, 1/64
Sensitivity
ISO Rating: 3200 (S-Log3 Gamma)
Lux: 2000 lx, 89.9% reflectance
Video Gamma: T14(3840 x 2160 @ 23.98p mode, 3200K)`
Min. Illumination
60i: 0.16 lx (iris f/1.4, gain auto, shutter speed 1/24)
50i: 0.18 lx (iris f/1.4, gain auto, shutter speed 1/25)
S/N Ratio : 57 db (Y) (typical)
Recording Format
XAVC Long :
100Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
60Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080p 59.94 / 50 / 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080i 59.94 / 50
50Mb/s: 1280 x 720p 59.94 / 50
35Mb/s: 1920 x 1280p 59.94 / 50 / 29.97 / 25 / 23.98
25Mb/s: 1920 x 1080i 59.94 / 50
XAVC Proxy :
H.264 / AVC
4:2:0 8-bit
MP4 wrapper
1280 x 720: 3 to 6Mb/s
640 x 360: 1 to 3Mb/s
AVCHD :
28Mb/s (PS): 1920 x 1080p 59.94 / 50
24Mb/s (FX): 1920 x 1080p 29.97 / 25 / 23.98
24Mb/s (FX): 1920 x 1080i 59.94 / 50
24Mb/s (FX): 1280 x 720p: 59.94 / 50
17Mb/s (FH): 1920 x 1080p 29.97 / 25 / 23.98
17Mb/s (FH): 1920 x 1080i 59.94 / 50
17Mb/s (FH): 1280 x 720p: 59.94 / 50
9Mb/s (HQ): 1280 x 720p: 59.94 / 50
Audio Recording Format
XAVC Long : Linear PCM 2 ch, 24-bit, 48kHz
AVCHD : Linear PCM 2 ch, 16-bit, 48kHz; Dolby digital 2ch, 16-bit, 48kHz
Shutter Speed
60i: 1/8 to 1/10,000
50i/24p:1/6 to 1/10,000
Gain Selection : 0, 3, 6, 9, 12, 15, 18, 24,27, 30dB, AGC
Gamma Curve : Selectable
White Balance : Preset, Memory A, Memory B (1500K-50000K)/ATW
Slow & Quick Motion Function
3840 x 2160 30p: Frame rate selectable 1, 2, 4, 8, 15, 30
3840 x 2160 25p: Frame rate selectable 1, 2, 3, 6, 12, 25
1920 x 1080 60i: Frame rate selectable 1, 2, 4, 8, 15, 30, 60
1920 x 1080 50i: Frame rate selectable 1, 2, 3, 6, 12, 25, 50
Super Slow Motion
60i: Frame rate selectable ( 120, 240, 480, 960)
50i: Frame rate selectable ( 100, 240, 400, 800)
WiFi Compatible
Format: IEEE 802.11 b/g/n
Frequency Band: 2.4 GHz
Security: WEP / WPA-PSK / WPA2-PSK
NFC: NFC Forum Type 3 Tag Compliant
Media Card Slots : 1 x MS/SD (dual Memory Stick/SD), 1 x SD
Audio Input : 2 x 3-pin XLR, Line/mic/mic +48
SDI Output : 1 x BNC HD/3G-SDI, SMPTE 292M / 424M / 425M
HDMI 2.0 : 1 x Type A
USB : 1 x Multi/Micro (composite video integrated into Multi/Micro USB jack)
Headphone : 1 x Stereo mini jack
Remote : Stereo mini jack (Φ2.5 mm)
Wired LAN : 1 x RJ-45 (100Base-TX/10Base-T)
Accessory Shoe : Multi-Interface (MI) shoe
Power Requirement : Battery Pack: 14.4 VDC, AC Adapter: 12 VDC
Power Consumption : NTSC: Approx 11.8W, PAL: Approx 11.5W
Temperature
Operating: 32 to 104oF / 0 to 40oC
Storage: -4 to 140oF / -20 to 60oC)
Dimensions
Body Only: 4.50 x 5.13 x 6.88" / 11.43 x 13.02 x 17.46 cm (approx)
Body, Lens & Accessories: 7.38 x 8.63 x 6.88" / 18.73 x 21.91 x 17.46 cm (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip)
Weight
Body Only: 29.2 oz / 827.8 g
Body, Lens & Accessories: 4.9 lb / 2.23 kg (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip)
Included Lens
Focal Length: 18 to 105mm (comparable 35mm Focal Length: 27 to 158mm)
Iris: f/4 to f/22
Angle of View: 77.4 to 15.6o
Minimum Focus Distance: 1.48' / 45 cm
Image Stabilization: Yes
Autofocus: Yes
Filter Thread: 72mm
Dimensions (D x L): Approx. 3.07 x 4.33" / 7.8 x 11 cm
Weight: 15.06 oz / 427 g
Effective Picture Size (H x V) : 3840 x 2160
LCD Monitor : 3.5" / 8.8 cm, Approximately 1.56M dots
Viewfinder : 0.39" / 0.99 cm OLED, Approximately 1.44M dots
ND Filter Variable : 1/4 to 1/128, Presets - Clear, 1/4, 1/26, 1/64
Sensitivity
ISO Rating: 3200 (S-Log3 Gamma)
Lux: 2000 lx, 89.9% reflectance
Video Gamma: T14(3840 x 2160 @ 23.98p mode, 3200K)`
Min. Illumination
60i: 0.16 lx (iris f/1.4, gain auto, shutter speed 1/24)
50i: 0.18 lx (iris f/1.4, gain auto, shutter speed 1/25)
S/N Ratio : 57 db (Y) (typical)
Recording Format
XAVC Long :
100Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
60Mb/s: 3840 x 2160p 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080p 59.94 / 50 / 29.97 / 25 / 23.98
50Mb/s: 1920 x 1080i 59.94 / 50
50Mb/s: 1280 x 720p 59.94 / 50
35Mb/s: 1920 x 1280p 59.94 / 50 / 29.97 / 25 / 23.98
25Mb/s: 1920 x 1080i 59.94 / 50
XAVC Proxy :
H.264 / AVC
4:2:0 8-bit
MP4 wrapper
1280 x 720: 3 to 6Mb/s
640 x 360: 1 to 3Mb/s
AVCHD :
28Mb/s (PS): 1920 x 1080p 59.94 / 50
24Mb/s (FX): 1920 x 1080p 29.97 / 25 / 23.98
24Mb/s (FX): 1920 x 1080i 59.94 / 50
24Mb/s (FX): 1280 x 720p: 59.94 / 50
17Mb/s (FH): 1920 x 1080p 29.97 / 25 / 23.98
17Mb/s (FH): 1920 x 1080i 59.94 / 50
17Mb/s (FH): 1280 x 720p: 59.94 / 50
9Mb/s (HQ): 1280 x 720p: 59.94 / 50
Audio Recording Format
XAVC Long : Linear PCM 2 ch, 24-bit, 48kHz
AVCHD : Linear PCM 2 ch, 16-bit, 48kHz; Dolby digital 2ch, 16-bit, 48kHz
Shutter Speed
60i: 1/8 to 1/10,000
50i/24p:1/6 to 1/10,000
Gain Selection : 0, 3, 6, 9, 12, 15, 18, 24,27, 30dB, AGC
Gamma Curve : Selectable
White Balance : Preset, Memory A, Memory B (1500K-50000K)/ATW
Slow & Quick Motion Function
3840 x 2160 30p: Frame rate selectable 1, 2, 4, 8, 15, 30
3840 x 2160 25p: Frame rate selectable 1, 2, 3, 6, 12, 25
1920 x 1080 60i: Frame rate selectable 1, 2, 4, 8, 15, 30, 60
1920 x 1080 50i: Frame rate selectable 1, 2, 3, 6, 12, 25, 50
Super Slow Motion
60i: Frame rate selectable ( 120, 240, 480, 960)
50i: Frame rate selectable ( 100, 240, 400, 800)
WiFi Compatible
Format: IEEE 802.11 b/g/n
Frequency Band: 2.4 GHz
Security: WEP / WPA-PSK / WPA2-PSK
NFC: NFC Forum Type 3 Tag Compliant
Media Card Slots : 1 x MS/SD (dual Memory Stick/SD), 1 x SD
Audio Input : 2 x 3-pin XLR, Line/mic/mic +48
SDI Output : 1 x BNC HD/3G-SDI, SMPTE 292M / 424M / 425M
HDMI 2.0 : 1 x Type A
USB : 1 x Multi/Micro (composite video integrated into Multi/Micro USB jack)
Headphone : 1 x Stereo mini jack
Remote : Stereo mini jack (Φ2.5 mm)
Wired LAN : 1 x RJ-45 (100Base-TX/10Base-T)
Accessory Shoe : Multi-Interface (MI) shoe
Power Requirement : Battery Pack: 14.4 VDC, AC Adapter: 12 VDC
Power Consumption : NTSC: Approx 11.8W, PAL: Approx 11.5W
Temperature
Operating: 32 to 104oF / 0 to 40oC
Storage: -4 to 140oF / -20 to 60oC)
Dimensions
Body Only: 4.50 x 5.13 x 6.88" / 11.43 x 13.02 x 17.46 cm (approx)
Body, Lens & Accessories: 7.38 x 8.63 x 6.88" / 18.73 x 21.91 x 17.46 cm (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip)
Weight
Body Only: 29.2 oz / 827.8 g
Body, Lens & Accessories: 4.9 lb / 2.23 kg (with 18 to 105mm lens, lens hood, large eyecup, LCD viewfinder, top handle, grip)
In the Box
E PZ 18-105mm f/4 G OSS Lens
Lens Hood
Large Eye Cup
LCD Viewfinder
LCD Viewfinder Protector
Top Handle
Grip Remote
Accessory Shoe Kit (Accessory Shoe, Accessory Shoe Plate, Attachment Screws)
2 x Power Cord
AC Adapter
BP-U30 Lithium-Ion Battery
BC-U1 Battery Charger
Wireless Remote Commander
Sony PXW-FS5K Manual
Lens Hood
Large Eye Cup
LCD Viewfinder
LCD Viewfinder Protector
Top Handle
Grip Remote
Accessory Shoe Kit (Accessory Shoe, Accessory Shoe Plate, Attachment Screws)
2 x Power Cord
AC Adapter
BP-U30 Lithium-Ion Battery
BC-U1 Battery Charger
Wireless Remote Commander
Sony PXW-FS5K Manual
