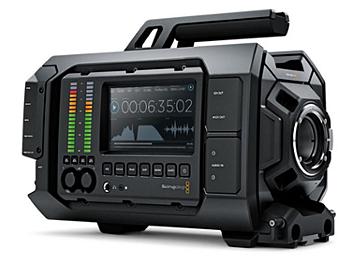

Blackmagic URSA 4.6K Digital Cinema Camera - EF Mount
| Harga | Rp 1,00 |
 |
4608 x 2592p Global Shutter CMOS Sensor
10.1-inch, 1080p LCD Screen
Records CinemaDNG RAW and ProRes
12G-SDI Output for 10-Bit 4:2:2 4K
2x XLR Audio Inputs with Phantom Power
LANC Port for START/STOP, Iris, Focus
Dual CFast 2.0 Card Slots
Specifications
Sensor
Size : 25.34 x 14.25mm (Super35)
Lens Mount : Active Canon EF Mount
Effective Resolution : 4608 x 2592
Dynamic Range : 15 stops
Shooting Resolutions :
4608 x 2592
4096 x 2304 (4K 16:9)
4608 x 1920 (4K 2.4:1)
3840 x 2160 (Ultra HD)
3072 x 2560 (3K Anamorphic)
2048 x 1152 (2K 16:9)
1920 x 1080
Supported Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported
Display
Dimensions :
1 x 10.1" diagonal
2 x 5" diagonal
Screen Type
10.1": TFT-LCD
5": Integrated LCD capacitive touchscreen
Resolution
10.1": 1920 x 1080
5": 800 x 480
Recording
Media Card Slots : 2 x CFast 2.0
Recording Formats : Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4608 x 2592, 4096 x 2304, 4608 x 1920, 3072 x 2560, and 2048 x 1152
Apple ProRes 3840 x 2160 and 1920 x 1080 with either film or video dynamic range
Data Rates :
4608 x 2592
CinemaDNG RAW 3:1 - 180 MB/s
CinemaDNG RAW 4:1 - 135 MB/s
3840 x 2160
Apple ProRes 444 XQ - 312.5 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
1920 x 1080
Apple ProRes 444 XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Storage rates based on 30 frames per second
Metadata Support : Automatic camera data and user data such as shot number, filenames, and keywords
Connectors
Output :
1 x 12G-SDI -- 10-bit 4:2:2
1 x 3G-SDI -- down-converted signal for monitoring
Input : 1 x 12G-SDI
Reference : 1 x Reference input
Timecode :
1 x Timecode input
1 x Timecode output
Analog Audio Inputs : 2 x XLR -- selected mic/line level and +48 V phantom power
Analog Audio Output : 1 x 1/4" TRS -- for headphone monitoring
SDI Audio Output : 2-channel via SDI output
Remote Control : 1 x LANC on 2.5 mm sub-mini -- controls record START/STOP, iris, and focus
USB : 1 x USB 2.0 mini type B for software updates
SDI Compliance : SMPTE 292M
SDI Audio Sampling : 48 kHz and 24-bit
General
Microphone : Integrated mono microphone
Speaker : Integrated mono microphone
Controls : Touch screen menus on 5" screen; push button controls for navigating menus
Power Connectors :
1 x 4-pin XLR input for external power supply or battery
1 x 12 VDC output on 4-pin XLR to power accessories
Battery Plate Support : Mounting holes for V-mount and Gold Mount battery plates
Operating Temperature : 32 to 104oF (0 to 40oC)
Storage Temperature : -4 to 113oF (-20 to 45oC)
Humidity : 0 to 90% RH, non-condensing
Dimensions : 12.3 x 6.1 x 9.6 (31.2 x 15.5 x 24.4 cm)
Weight : 16.52 lbs (7.5 kg)
Size : 25.34 x 14.25mm (Super35)
Lens Mount : Active Canon EF Mount
Effective Resolution : 4608 x 2592
Dynamic Range : 15 stops
Shooting Resolutions :
4608 x 2592
4096 x 2304 (4K 16:9)
4608 x 1920 (4K 2.4:1)
3840 x 2160 (Ultra HD)
3072 x 2560 (3K Anamorphic)
2048 x 1152 (2K 16:9)
1920 x 1080
Supported Frame Rates Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported
Display
Dimensions :
1 x 10.1" diagonal
2 x 5" diagonal
Screen Type
10.1": TFT-LCD
5": Integrated LCD capacitive touchscreen
Resolution
10.1": 1920 x 1080
5": 800 x 480
Recording
Media Card Slots : 2 x CFast 2.0
Recording Formats : Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 with film dynamic range at 4608 x 2592, 4096 x 2304, 4608 x 1920, 3072 x 2560, and 2048 x 1152
Apple ProRes 3840 x 2160 and 1920 x 1080 with either film or video dynamic range
Data Rates :
4608 x 2592
CinemaDNG RAW 3:1 - 180 MB/s
CinemaDNG RAW 4:1 - 135 MB/s
3840 x 2160
Apple ProRes 444 XQ - 312.5 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
1920 x 1080
Apple ProRes 444 XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Storage rates based on 30 frames per second
Metadata Support : Automatic camera data and user data such as shot number, filenames, and keywords
Connectors
Output :
1 x 12G-SDI -- 10-bit 4:2:2
1 x 3G-SDI -- down-converted signal for monitoring
Input : 1 x 12G-SDI
Reference : 1 x Reference input
Timecode :
1 x Timecode input
1 x Timecode output
Analog Audio Inputs : 2 x XLR -- selected mic/line level and +48 V phantom power
Analog Audio Output : 1 x 1/4" TRS -- for headphone monitoring
SDI Audio Output : 2-channel via SDI output
Remote Control : 1 x LANC on 2.5 mm sub-mini -- controls record START/STOP, iris, and focus
USB : 1 x USB 2.0 mini type B for software updates
SDI Compliance : SMPTE 292M
SDI Audio Sampling : 48 kHz and 24-bit
General
Microphone : Integrated mono microphone
Speaker : Integrated mono microphone
Controls : Touch screen menus on 5" screen; push button controls for navigating menus
Power Connectors :
1 x 4-pin XLR input for external power supply or battery
1 x 12 VDC output on 4-pin XLR to power accessories
Battery Plate Support : Mounting holes for V-mount and Gold Mount battery plates
Operating Temperature : 32 to 104oF (0 to 40oC)
Storage Temperature : -4 to 113oF (-20 to 45oC)
Humidity : 0 to 90% RH, non-condensing
Dimensions : 12.3 x 6.1 x 9.6 (31.2 x 15.5 x 24.4 cm)
Weight : 16.52 lbs (7.5 kg)
In the Box
EF-Mount Port Cap
Power Supply
DaVinci Resolve Full-Version Software
Power Supply
DaVinci Resolve Full-Version Software
