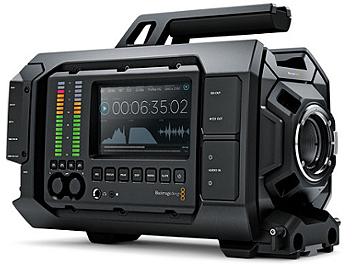

Blackmagic URSA 4K v2 Digital Cinema Camera - EF Mount
| Harga | Rp 1,00 |
 |
3840 x 2160p Global Shutter CMOS Sensor
12 Stops of Dynamic Range
10.1", 1080p Flip-Out LCD Screen
Dual 5" Touchscreens for Menu Access
Records CinemaDNG RAW and Pro Res 422 HQ
12G-SDI Output for 10-Bit 4:2:2 4K
2x XLR Audio Inputs with Phantom Power
Aluminum Frame with 3/8"-16 Mounting
LANC Port for START/STOP, Iris, Focus
Dual CFast 2.0 Card Slots
Specifications
Sensor
Size : 21.12 x 11.88 mm (Super35)
Lens Mount : Active Canon EF Mount
Effective Resolution : 3840 x 2160 (UltraHD 4K)
Dynamic Range : 12 stops
Sensor Frame Rate Support : Up to 60 fps
Shooting Resolutions : 3840 x 2160, 1920 x 1080
Supported Frame Rates -
2160p : 23.98, 24, 25, 29.9, 30, 60
1080p : 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i : 50, 59.9, 60i
Display
Dimensions : 1 x 10.1" diagonal, 2 x 5" diagonal
Screen Type : 10.1": TFT-LCD, 5": Integrated LCD capacitive touchscreen
Resolution : 10.1": 1920 x 1080, 5": 800 x 480
Recording
Media Card Slots : 2 x CFast 2.0
Compressed Recording Formats :
CinemaDNG RAW -- losslessly compressed at 3840 x 2160; film dynamic range
Apple ProRes 422 (HQ): 3840 x 2160 or 1920 x 1080; film or video dynamic range
Data Rates :
Apple ProRes 422 (HQ) at 2160p: Approx. 880 Mbps
Apple ProRes 422 (HQ) at 1080p: Approx. 220 Mbps
Metadata Support : Automatic camera data and user data such as shot number, filenames, and keywords
Connections
Output :
1 x 12G-SDI -- 10-bit 4:2:2
1 x 3G-SDI -- down-converted signal for monitoring
Input : 1 x 12G-SDI
Reference : 1 x Reference input
Timecode : 1 x Timecode input, 1 x Timecode output
Analog Audio Inputs : 2 x XLR -- selected mic/line level and +48 V phantom power
Analog Audio Output : 1 x 1/4" TRS -- for headphone monitoring
SDI Audio Output : 2-channel via SDI output
Remote Control : 1 x LANC on 2.5 mm sub-mini -- controls record START/STOP, iris, and focus
USB : 1 x USB 2.0 mini type B for software updates
Supported Standards -
SDI Compliance : SMPTE 292M
SDI Audio Sampling : 48 kHz and 24-bit
General
Microphone : Integrated mono microphone
Speaker : Integrated mono microphone
Controls : Touch screen menus on 5" screen; push button controls for navigating menus
Mounting Options :
Multiple 1/4"-20 UNC thread mounting on top of camera and on handle bar; multiple 3/8"-16 UNC thread on top of camera body; rosette on bottom
Integrated rod mounts compatible with 15mm Light Weight Support (LWS) standard
System Requirements : For DaVinci Resolve: Windows 7 or later or OS X 10.8 or later
Power Connectors :
1 x 4-pin XLR input for external power supply or battery
1 x 12 VDC output on 4-pin XLR to power accessories
Battery Plate Support : Mounting holes for V-mount and Gold Mount battery plates
Operating Temperature : 0 to 40oC (32 to 104oF)
Storage Temperature : -20 to 45oC (-4 to 113oF)
Humidity : 0 to 90% RH, non-condensing
Dimensions : 31.2 x 15.5 x 24.4 cm (12.3 x 6.1 x 9.6 in)
Weight : 7.4kg (16.52 lbs)
Size : 21.12 x 11.88 mm (Super35)
Lens Mount : Active Canon EF Mount
Effective Resolution : 3840 x 2160 (UltraHD 4K)
Dynamic Range : 12 stops
Sensor Frame Rate Support : Up to 60 fps
Shooting Resolutions : 3840 x 2160, 1920 x 1080
Supported Frame Rates -
2160p : 23.98, 24, 25, 29.9, 30, 60
1080p : 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i : 50, 59.9, 60i
Display
Dimensions : 1 x 10.1" diagonal, 2 x 5" diagonal
Screen Type : 10.1": TFT-LCD, 5": Integrated LCD capacitive touchscreen
Resolution : 10.1": 1920 x 1080, 5": 800 x 480
Recording
Media Card Slots : 2 x CFast 2.0
Compressed Recording Formats :
CinemaDNG RAW -- losslessly compressed at 3840 x 2160; film dynamic range
Apple ProRes 422 (HQ): 3840 x 2160 or 1920 x 1080; film or video dynamic range
Data Rates :
Apple ProRes 422 (HQ) at 2160p: Approx. 880 Mbps
Apple ProRes 422 (HQ) at 1080p: Approx. 220 Mbps
Metadata Support : Automatic camera data and user data such as shot number, filenames, and keywords
Connections
Output :
1 x 12G-SDI -- 10-bit 4:2:2
1 x 3G-SDI -- down-converted signal for monitoring
Input : 1 x 12G-SDI
Reference : 1 x Reference input
Timecode : 1 x Timecode input, 1 x Timecode output
Analog Audio Inputs : 2 x XLR -- selected mic/line level and +48 V phantom power
Analog Audio Output : 1 x 1/4" TRS -- for headphone monitoring
SDI Audio Output : 2-channel via SDI output
Remote Control : 1 x LANC on 2.5 mm sub-mini -- controls record START/STOP, iris, and focus
USB : 1 x USB 2.0 mini type B for software updates
Supported Standards -
SDI Compliance : SMPTE 292M
SDI Audio Sampling : 48 kHz and 24-bit
General
Microphone : Integrated mono microphone
Speaker : Integrated mono microphone
Controls : Touch screen menus on 5" screen; push button controls for navigating menus
Mounting Options :
Multiple 1/4"-20 UNC thread mounting on top of camera and on handle bar; multiple 3/8"-16 UNC thread on top of camera body; rosette on bottom
Integrated rod mounts compatible with 15mm Light Weight Support (LWS) standard
System Requirements : For DaVinci Resolve: Windows 7 or later or OS X 10.8 or later
Power Connectors :
1 x 4-pin XLR input for external power supply or battery
1 x 12 VDC output on 4-pin XLR to power accessories
Battery Plate Support : Mounting holes for V-mount and Gold Mount battery plates
Operating Temperature : 0 to 40oC (32 to 104oF)
Storage Temperature : -20 to 45oC (-4 to 113oF)
Humidity : 0 to 90% RH, non-condensing
Dimensions : 31.2 x 15.5 x 24.4 cm (12.3 x 6.1 x 9.6 in)
Weight : 7.4kg (16.52 lbs)
In the Box
Active EF Mount
Lens Port Dust Cap
12V AC Adapter
DaVinci Resolve and Dongle
Lens Port Dust Cap
12V AC Adapter
DaVinci Resolve and Dongle
