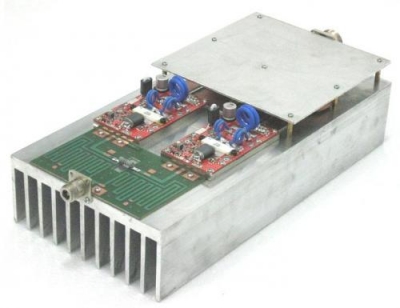

BLF574 Pallet 1100 Watt
| Harga | Rp 1,00 |
 |
READY STOCK
Di Mounting Pada Heatsink Jumbo Design
# 48 Volts @ 32 - 36ADC
# 86-110MHz
# BLF574 50volt LDMOS Technology.
# Input/Output 50 ohms
# Pout 1000W min. 4 watt input
# P1dB 1200W Max
# 25 dB gain minimum.
# Heavy duty output hybrid is rated for 2000W.
# Class B push-pull.
# Temperature compensated bias.
# 1/4 inch alloy 145 copper base.
# Weight 5 LBS
