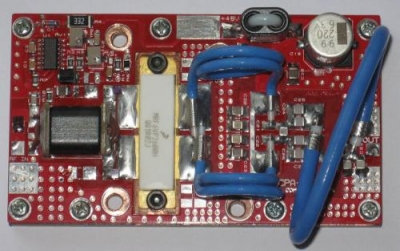

Pallet FM 600w 2nd Generation

Pallet FM 600w 2nd Generation
Harga
Rp 1,00
  Beli Pallet FM 600w 2nd Generation

2nd Generation Pallet by Giant Communication
using Frescale Mosfet for more rugged and Reliablility

TEFLON PCB , ROGER type

* 87.5-108MHz 48Volts
* Input/Output 50 ohms
* Pout 600W with a 5 watt input. , continue 500w
* 25dB gain minimum.
* Copper Base Plate
* Low distortion Class B push-pull.
* Small size: only 5.7 x 10 cm
* 78% efficiency typical.
