PCM 60 UHF

PCM 60 UHF
Harga
Rp 1,00
  Beli PCM 60 UHF

Features:



PCM 60



- POWER COFDM: 60

- POWER ATSC: 70

- POWER ANALOG: 90

- CONNECTOR: N

- RACK UNIT: 1

- POWER CONSUMPTION: 275

- RACK: NO

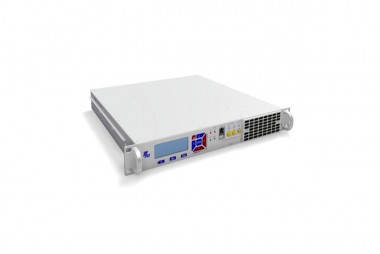

The PCM 60 is a low power transmitter and Gap filler solution from PCM Line. In 1RU rack module-19” std PCM 70 offers a digital power of 20 Wrms (COFDM), 80 Wrms (ATSC), 100 Wps (Analog power).

(ATSC 3.0 READY, only software update needed)

Key facts:



Multistandard Transmitter: All digital / All analog in the same hardware

Multimode platform: same hardware: System driver, low power transmitter, heterodyne transposer, regenerative transmitter, translator (integrated DVB-S2 receiver), Gap filler and Single Frequency Echo Canceller

Compact solution AB class Transmitter

Base inputs: 2x ASI Hitless switch (with BNC Connectors), 2x SAT (S2 with CAMSlot), 2x Ethernet Hitless switch

Regenerative and SFN Gap filler functionality

Freq. agile with static or adaptive pre-correction (Linear and non linear)

BUILT in GPS receiver for SFN applications

Easy to use: web graphic interface GUI response

PCM line represents the state of the art of the RF transmitter technology. It’s the unique investment exciter thanks to its capability to modulate in all Digital standard, TV and Radio as the TV analog too.



PCM platform allows the standard change via software, it’s the perfect solution for broadcasters who are already in digital and need to take advantage of versatility in operation modes, configuration and performance, it’s the perfect solution for broadcasters who are still working on the digital transition.

PCM can be an exciter, low power transmitter (UP to 200Wrms in 2RU), a regenerative transmitter, translator (integrated DVB-S2 receiver), Gap filler and Single Frequency Echo Canceller (perfect for Single Frequency Network), all in a single hardware.



PCM already implements DVB-T/T2, ATSC /MH, ISDB-T/Tb, DAB, DTMB and all Analog standards.

PCM always embeds linear and non-linear pre-correction to optimize the global system performance. Pre-correction can be static, i.e. based on pre-stored tables, or adaptive, with real-time evaluation and compensation of possible distortions in the amplification.



PCM can be configured as managed remotely, using a dry contact, via SNMP commands, via TCP/IP or graphic user interface designed by us using whatever of the common web browsers.

PCM allows a total remote control of itself and its functionality by serial protocols or TCP/IP ports. Our platform can easily monitored / configured and updated using a LAN connection or a USB Key.Features:PCM 60



- POWER COFDM: 60

- POWER ATSC: 70

- POWER ANALOG: 90

- CONNECTOR: N

- RACK UNIT: 1

- POWER CONSUMPTION: 275

- RACK: NO
