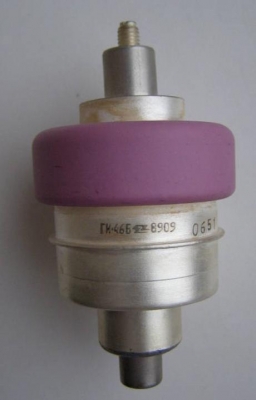

Russia GI-46B

Russia GI-46B
Harga
Rp 1,00
  Beli Russia GI-46B

Barang Baru



TANPA COOLER 850 Ribu




Type- pulse triode

Cathode type - oxide, indirect heating

Application field- oscillation and amplification RF in UHF band in pulse and continous anode manipulation mode

Brief application- oscillation, amplification

Envelope metall-ceramic

Cooling method-forced air

Dimensions- 113mmx55mm

Mass- 620g

Filament voltage -12,6V

Filament current -2,3 - 2,6A

normal anode voltage- 2kV

Mutual conductance -17 to 26mA/V

Output power- 450W CW or 1.0 kW PEP or 15KW in pulse

Maximum anode voltage- 3.0kV

Maximum operating frequency- 28cm
