Hybrid Resistor 800w

Hybrid Resistor 800w
Harga
Rp 1,00
  Beli Hybrid Resistor 800w

Barang Baru
Ready Stock

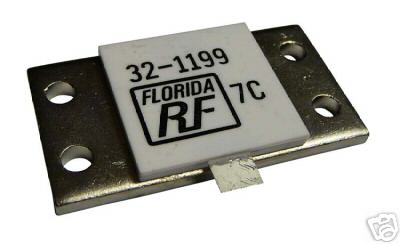

hybrid 50 ohm terminating load resistors rated at 800 watts continuous power dissipation when installed on an appropriate heat sink.
It is a solder in type part with no RF connectors, and 1500 watts PEP for short periods.
They measures approximately 2 inch long x 1 inch wide x .25 inch high and are rated up to 500 mHz with a VSWR of less than 1.3.
For pulse operation, the part is rated at 8000 watts for 1% duty cycle and pulses less than 100 microseconds. These parts are good to build your own load or for terminating isolator circuits on RF amplifiers.
