Times Analyzer VHF/UHF

 Times Analyzer VHF/UHF
Harga
Rp 1,00
  Beli  Times Analyzer VHF/UHF





Barang Baru

Ready Stock

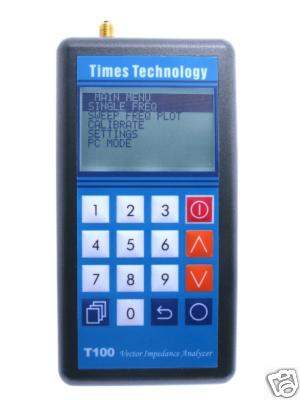

VHF/UHF Handheld Vector Antenna Impedance Analyzer



Main Features:

* Able to distinguish the sign (inductive/capacitive impedance) without frequency shifting and guessing.

* Open/Short/Load calibration with standard 3-term error correction

* Graphical Display (SWR, Z, R, X, S11, Phase Angle)

* Supports USB connection to PC for control & measurement (PC host program included)

* Supports USB firmware update







Specifications:

Frequency Range:

100MHz ~ 170MHz (VHF)

400MHz ~ 470MHz (UHF)

All PLL synthesized



Frequency Resolution: 25KHz



Test Port Connector: SMA (female)



Output Power: > 0dBm (typical)



Output Harmonics: < -30dBc (typical)



Display: 128x64 pixel monochrome LCD with backlight



Dimension: 140mm(length) x 68mm(width) x 25mm(thickness)



Net weight: 130 gram (without batteries)



Power: AA Size Battery x 2



Accessories Included:

Amphenol SMA Open, Short, Load "Standards", one each.

One SMA (male) to PL-259 converter

One SMA (male) to BNC (female) converter

One USB A to mini-B cable

CD-ROM (English Manual, PC host program for XP, USB driver for XP, firmware update tools)
